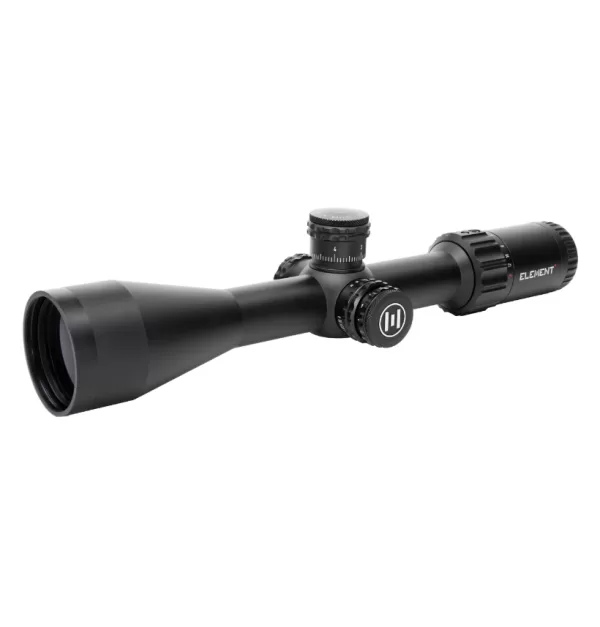

Element Optics HELIX HDLR 2-16×50 SFP

We’ve designed the HELIX in a way that puts the important things first: clear glass, smart reticles, innovative features and a turret system superior to other products in the same price class. The HDLR takes things one step further, with HD Glass, Reticle Illumination, a massive Zoom Range and more Elevation Travel. We’ve kept the ever popular Tool-Free system and Zero-Stop on the Elevation turret for ease of use when dealing for extended ranges, but have capped the windage for a more hunter-friendly, compact feel. Stringent quality control procedures give you peace of mind when taking that 1000 yard shot, and if something goes wrong, our Platinum Lifetime Warranty has you covered!

30mm Main Body Tube
8x Zoom Optical System
Compact, Lightweight design
Second Focal Plane Reticle
Aircraft Grade Aluminum
Side Parallax: 10m-Infinity
Fully Multi-Coated Lenses with HD Glass
Tool-Free Exposed Elevation Turret, Capped Windage Turret
Zero Stop
Removable Magnification Throw Lever
Waterproof, Fogproof, Shockproof & Nitrogen Purged
Sunshade, Lens Cloth & Lens Caps Included

MAGNIFICATION RANGE 2-16x
TUBE DIAMETER 30mm
OBJECTIVE LENS DIAMETER 50mm
EXIT PUPIL 8.5-3.1mm
EYE RELIEF 101.6mm (4”)
FIELD OF VIEW 60.2-7.49ft @ 100yds (20.2 – 2.51m @ 100m)
CLICK VALUE 1/10 MRAD (6 MRAD / REV)
ELEVATION ADJUSTMENT RANGE 100 MOA 29 MRAD
WINDAGE ADJUSTMENT RANGE 45 MOA 13 MRAD
MINIMUM PARALLAX 10 YDS 10 METERS
LENGTH 13.39 Inches 340mm
WEIGHT 27.1oz 770g
